ICB-Q components

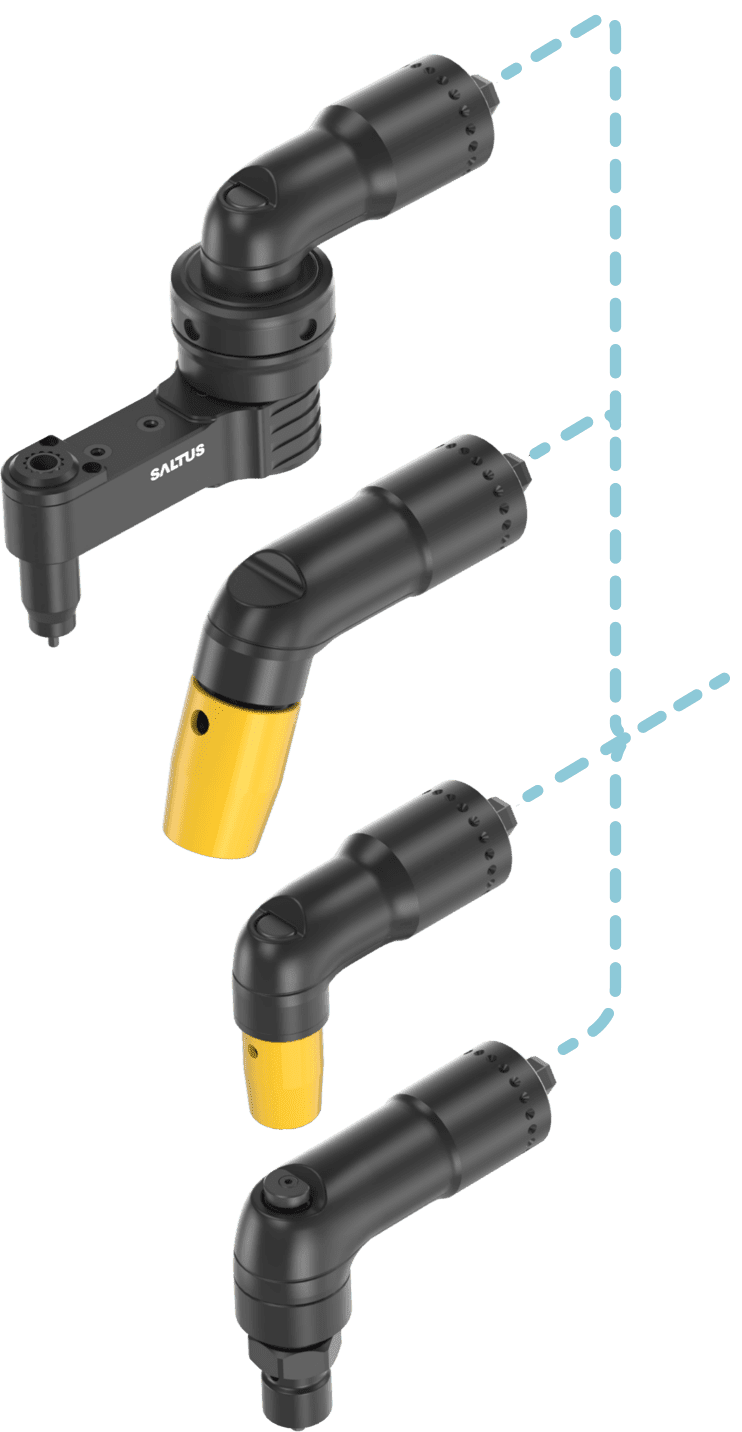

Each tool is composed of one Driving Unit and, at least, one Quick Change Attachment (Q2).
There are 2 types of Driving Units and 3 types of Quick Change Attachments available.
(Quick Change Attachment)
Quick Change Head
Quick Change Head with GFA

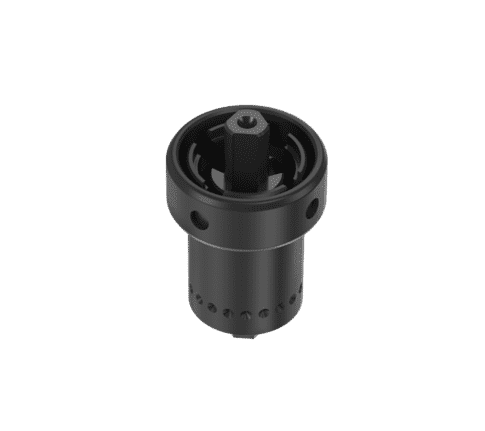

Quick Change Adapter
Read more

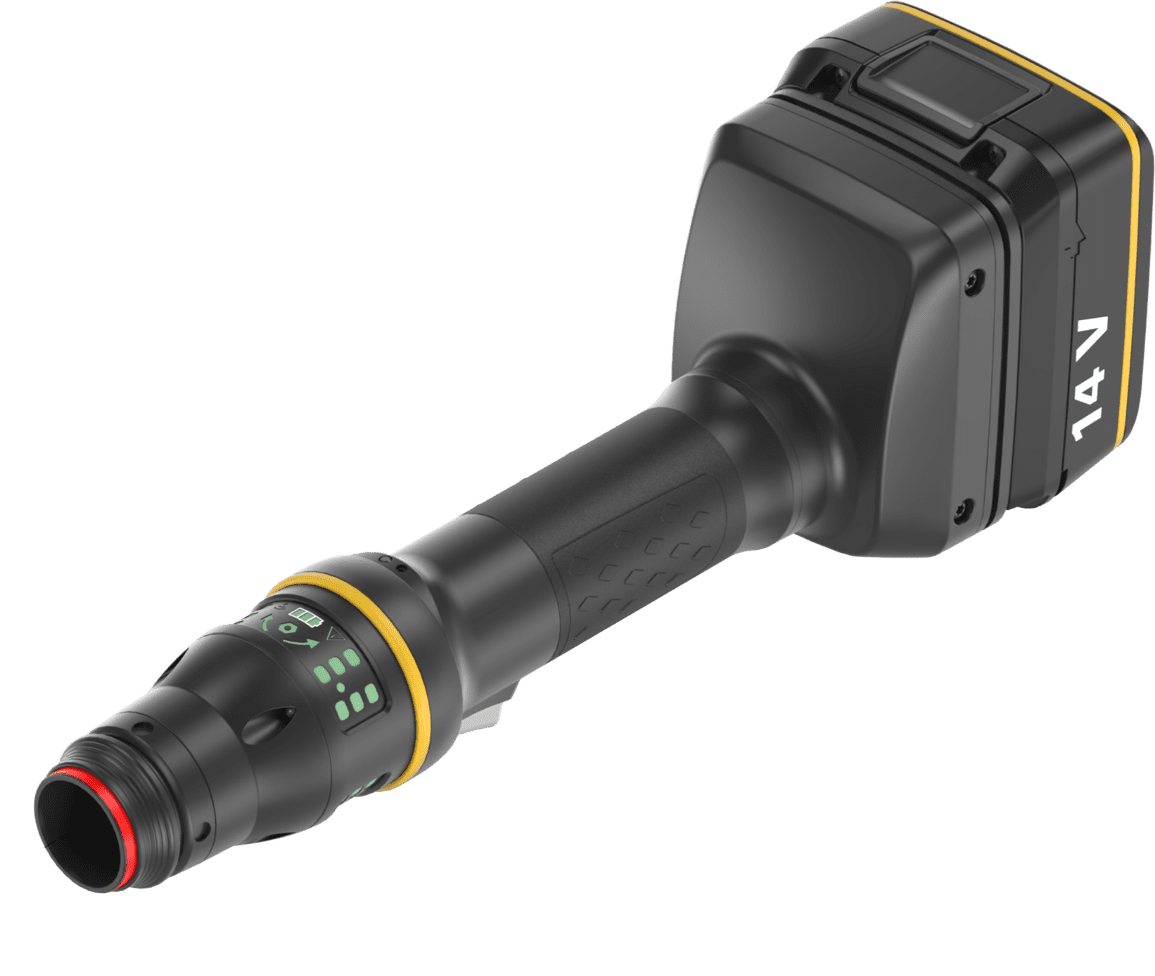

(Driving Units)

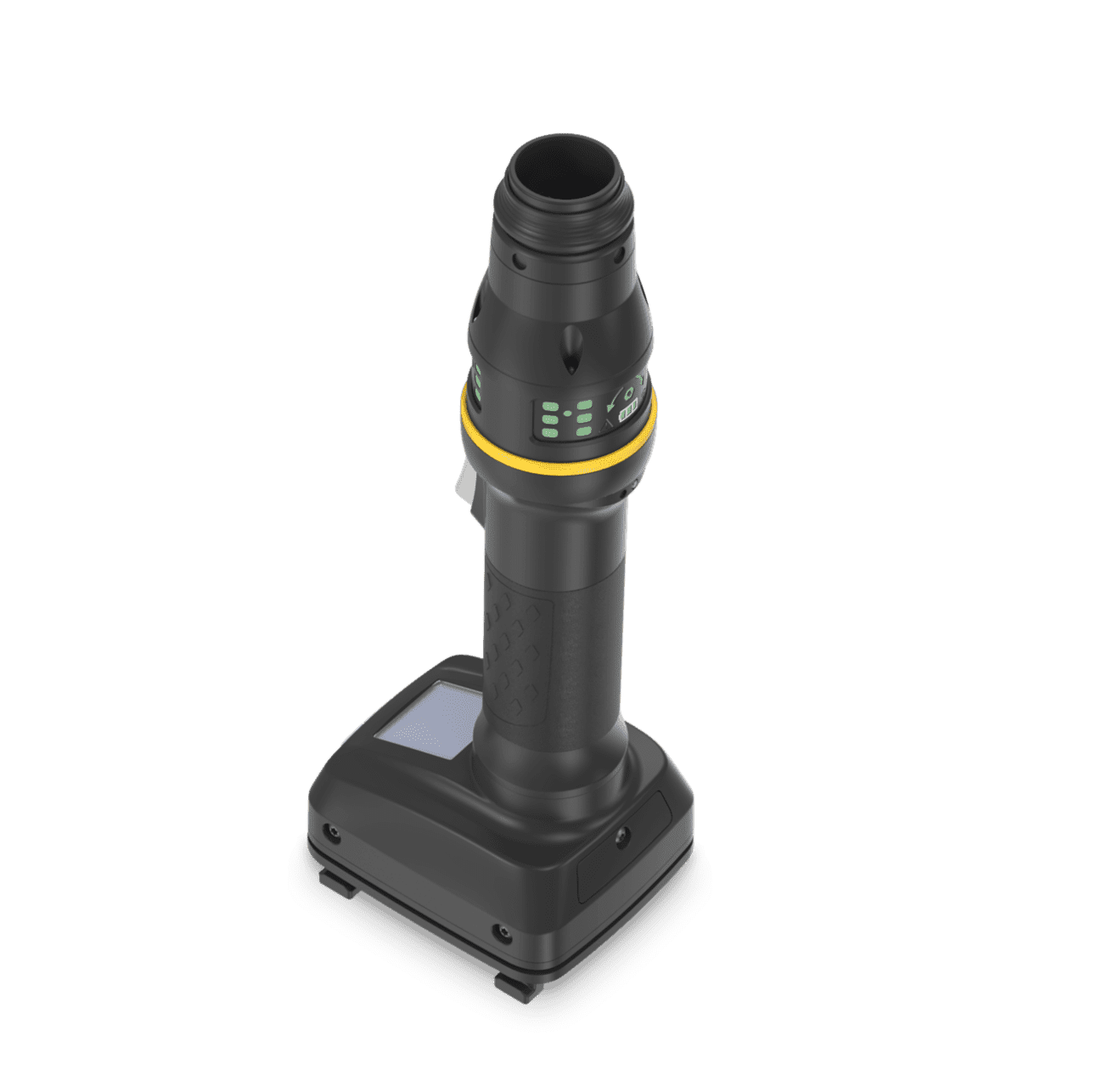

With HMI

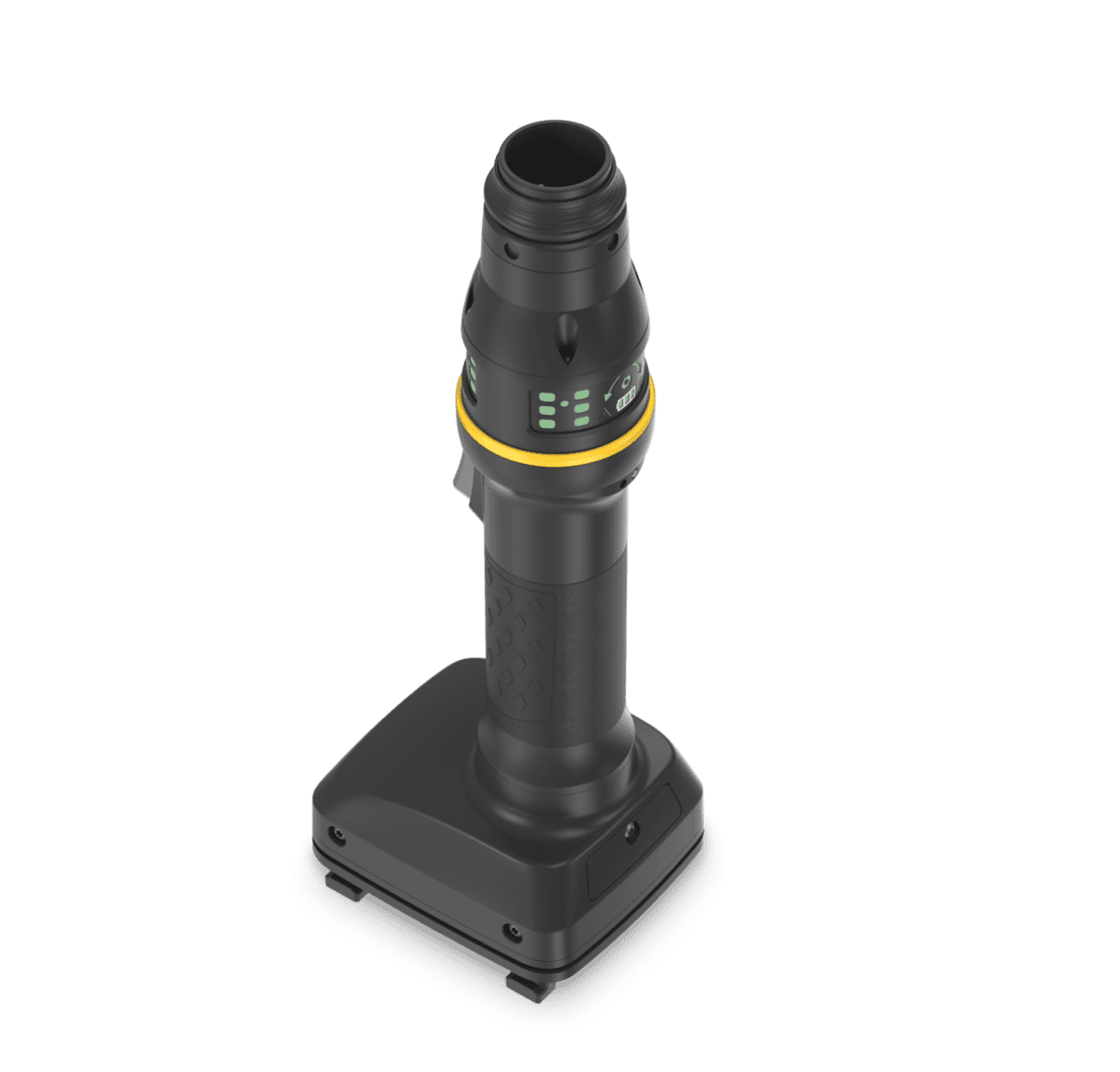

Without HMI
Each type of Driving Unit is available in two sizes. One for lower torque which will reach 7 Nm and another version that delivers a higher torque, up to 13 Nm.
The final torque output of the tool will vary based on the specific Q2 head attached in each instance
Power Units with lower torque reaching 7 Nm
Description
Reference
Min. Torque
Speed
Weight*
ICB-Q21-07
8436003007
1,4 Nm
1205 rpm
1 kg
ICB-Q21-07-HMI
8436003008
Power Units with higher torque reaching up to 13 Nm
Without HMIICB-Q21-07ICB-Q21-13
With HMIICB-Q21-07-HMIICB-Q21-13-HMI
The Angle heads can be used directly with a Socket. There are two models compatible with the 7 Nm Power Unit, and the other five are compatible with the 13 Nm one. The final torque achieved with each angle head is shown in the tables below.

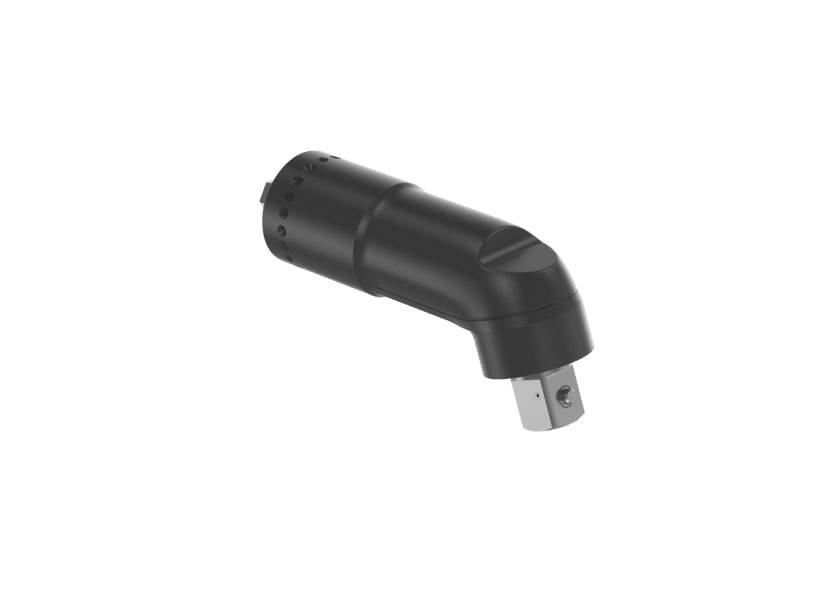

Q2-Z

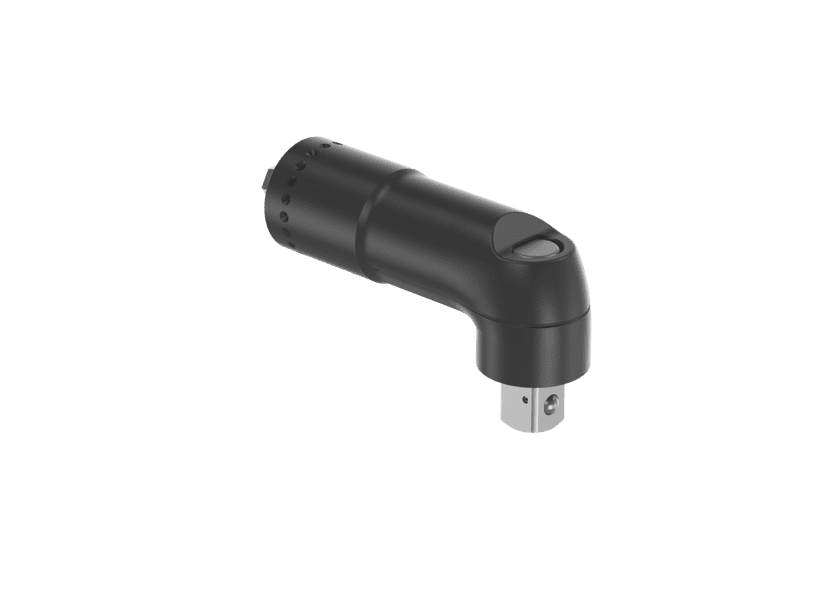

Q2-A
Heads compatible with ICB-Q21-07 and ICB-Q21-07-HMI
Max. Torque
Output Drive
Heads compatible with ICB-Q21-13 and ICB-Q21-13-HMI

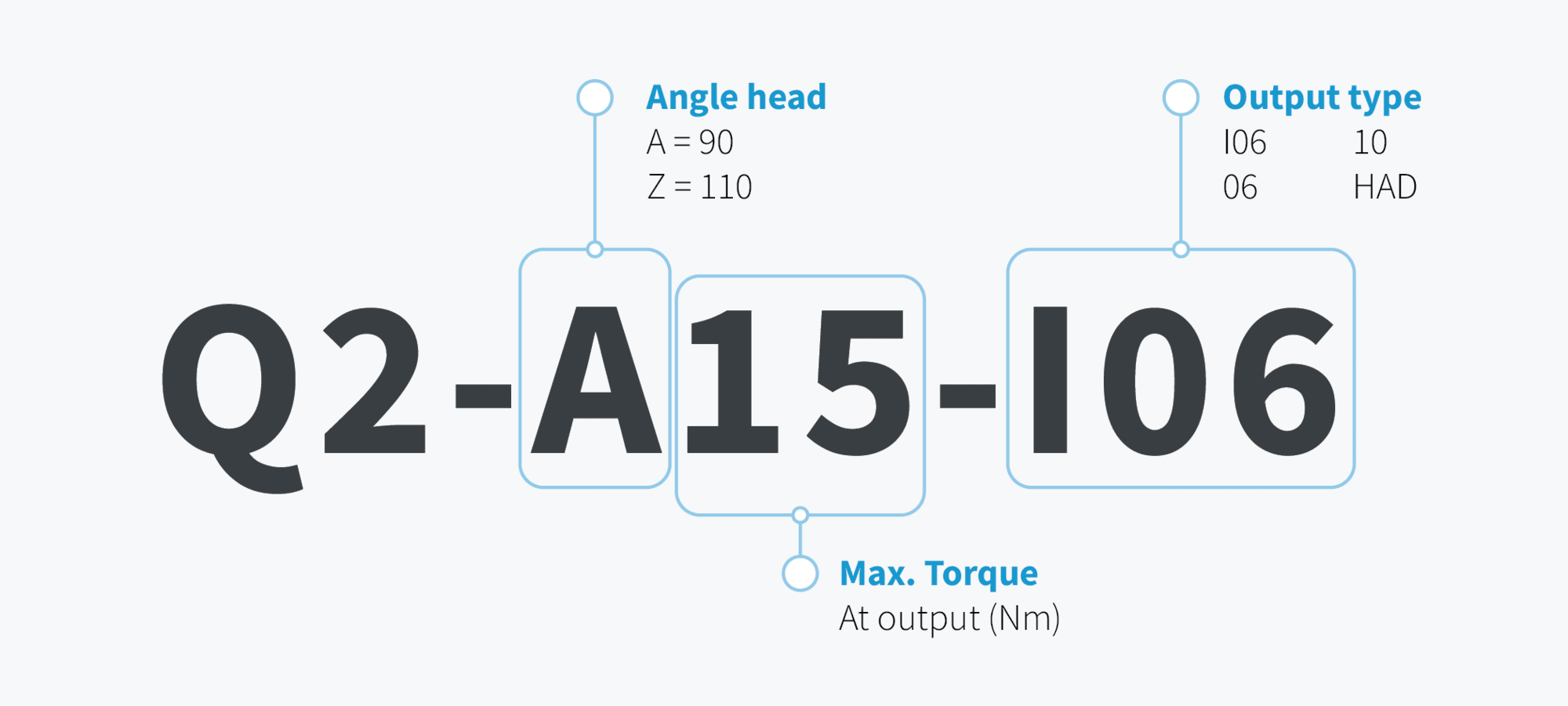

The naming key for the characteristics of each Quick Change Angle Head

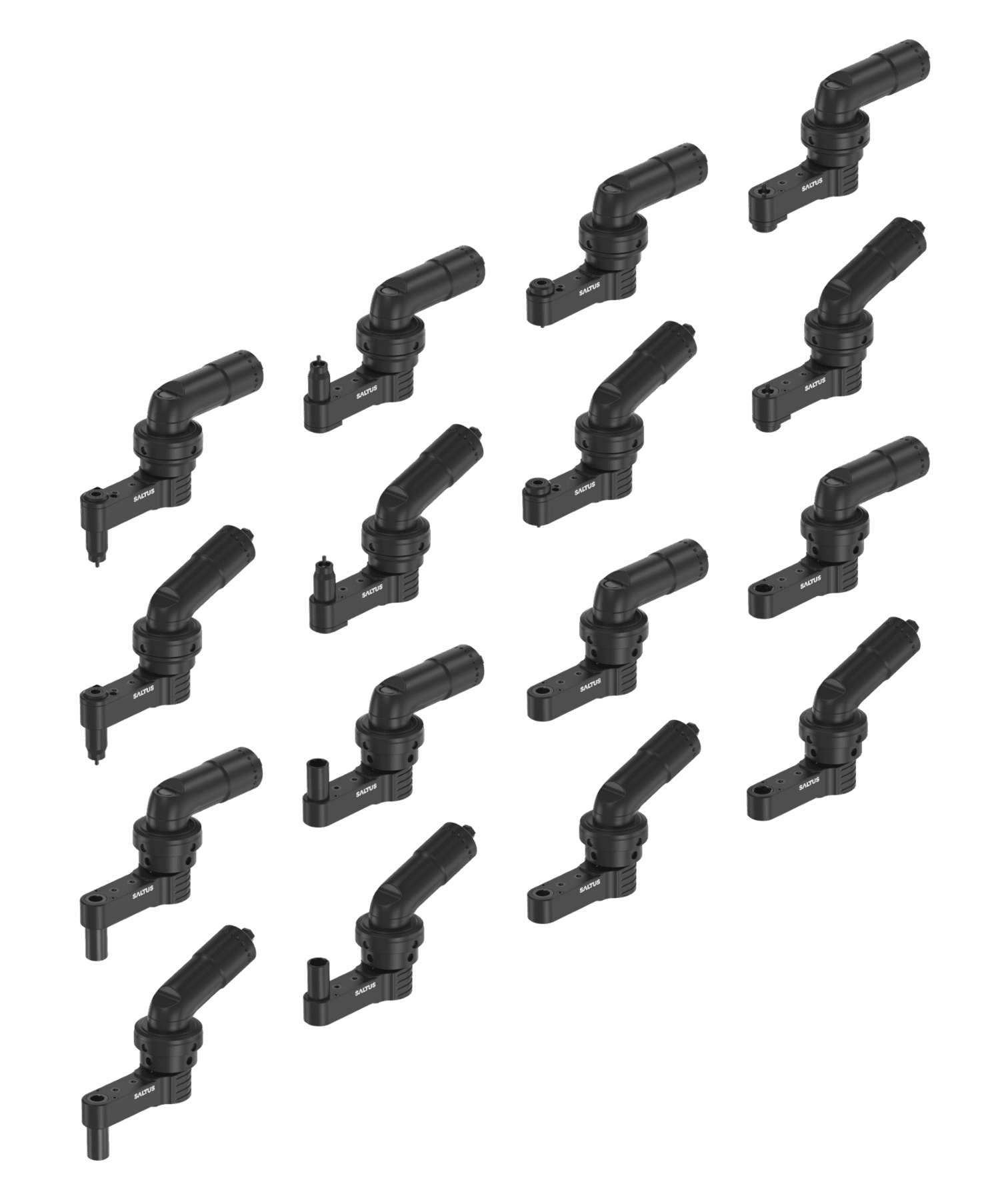

When Quick Change Angle Heads are combined with Geared Front Attachments (GFA), the possibilities become virtually endless.

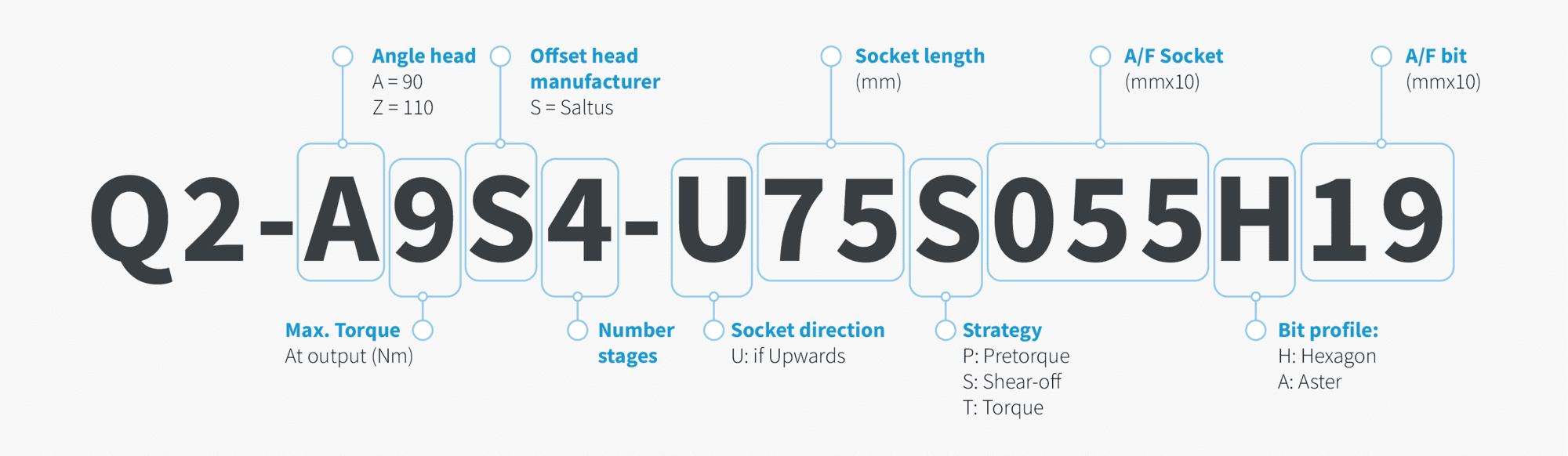

The naming key below specifies the configurable values that need to be defined to produce one of these heads.
Additionally, we also offer the possibility to use the adaptor which allows the attachment of crowfoots from other suppliers if needed
