Features and benefits

Integrated sensors for better control and accuracy

Pain Point: Conventional tensioning operation works with pressure controlled through valves inside the pump. Expansion of hoses, wear and tear of valves, seals etc in the system demands a settling time when pressure is quickly built up to target pressure.

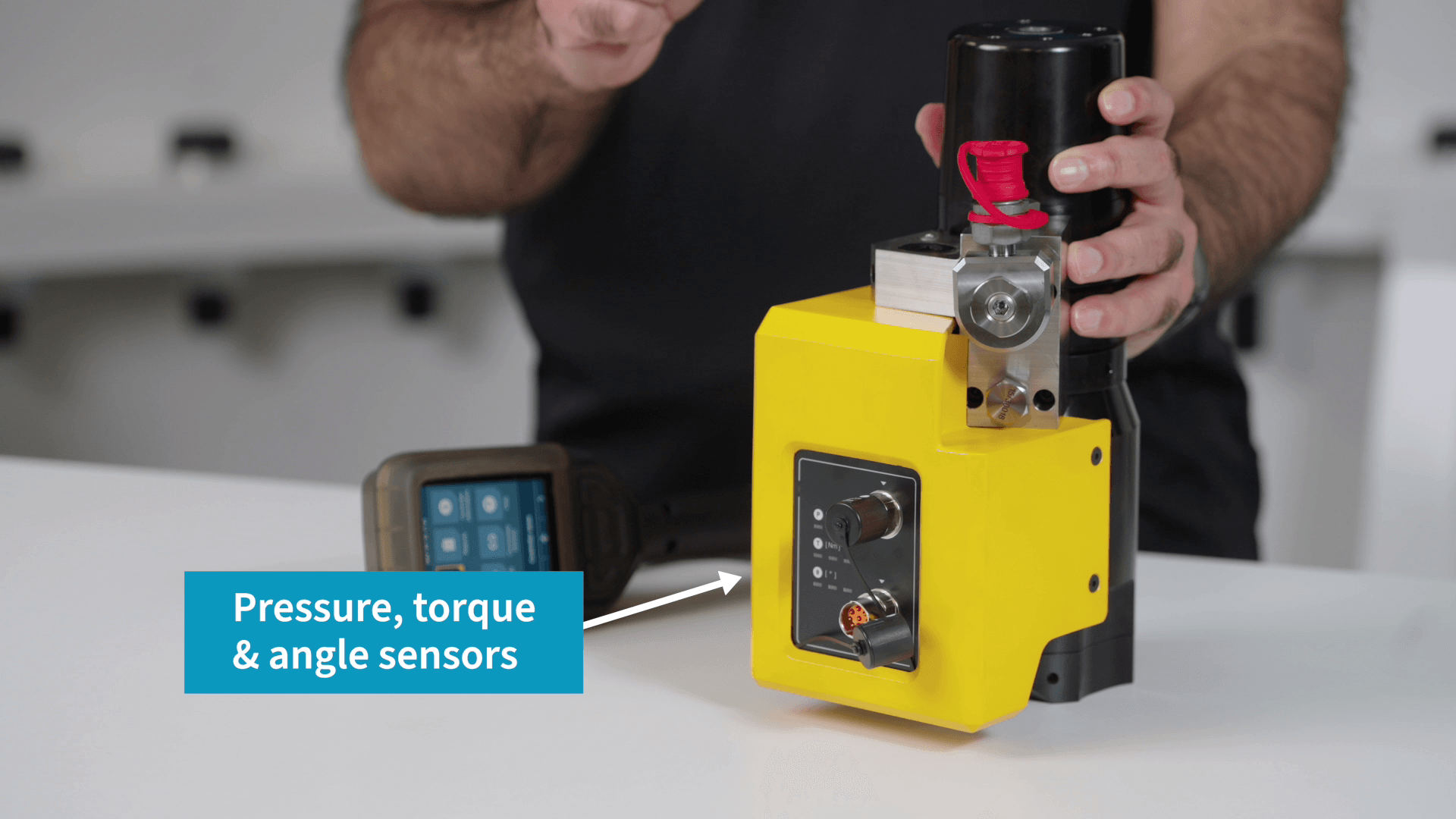

Solution: Pressure sensor inside the tensioner saves 30-50% cycle time lost in waiting for relaxation. Further, with Torque and angle sensors together with pressure sensors, it provides the highest level of accuracy.

Do you feel like the tensioning process is too long?

One controller for the whole process

Pain Point: Too many components to monitor the complete process. All other tensioning systems have external and separate devices to scan, control pump and display units to run operations.

This takes up too much space & time, making the whole process longer.

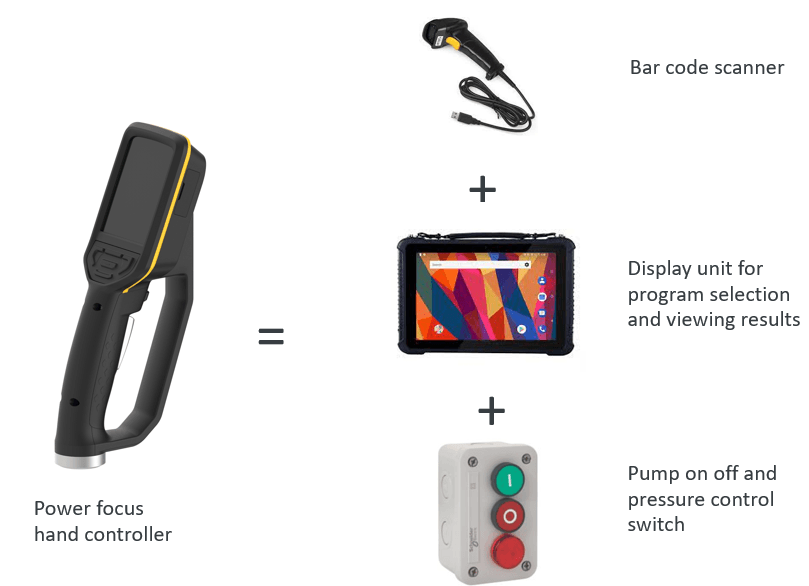

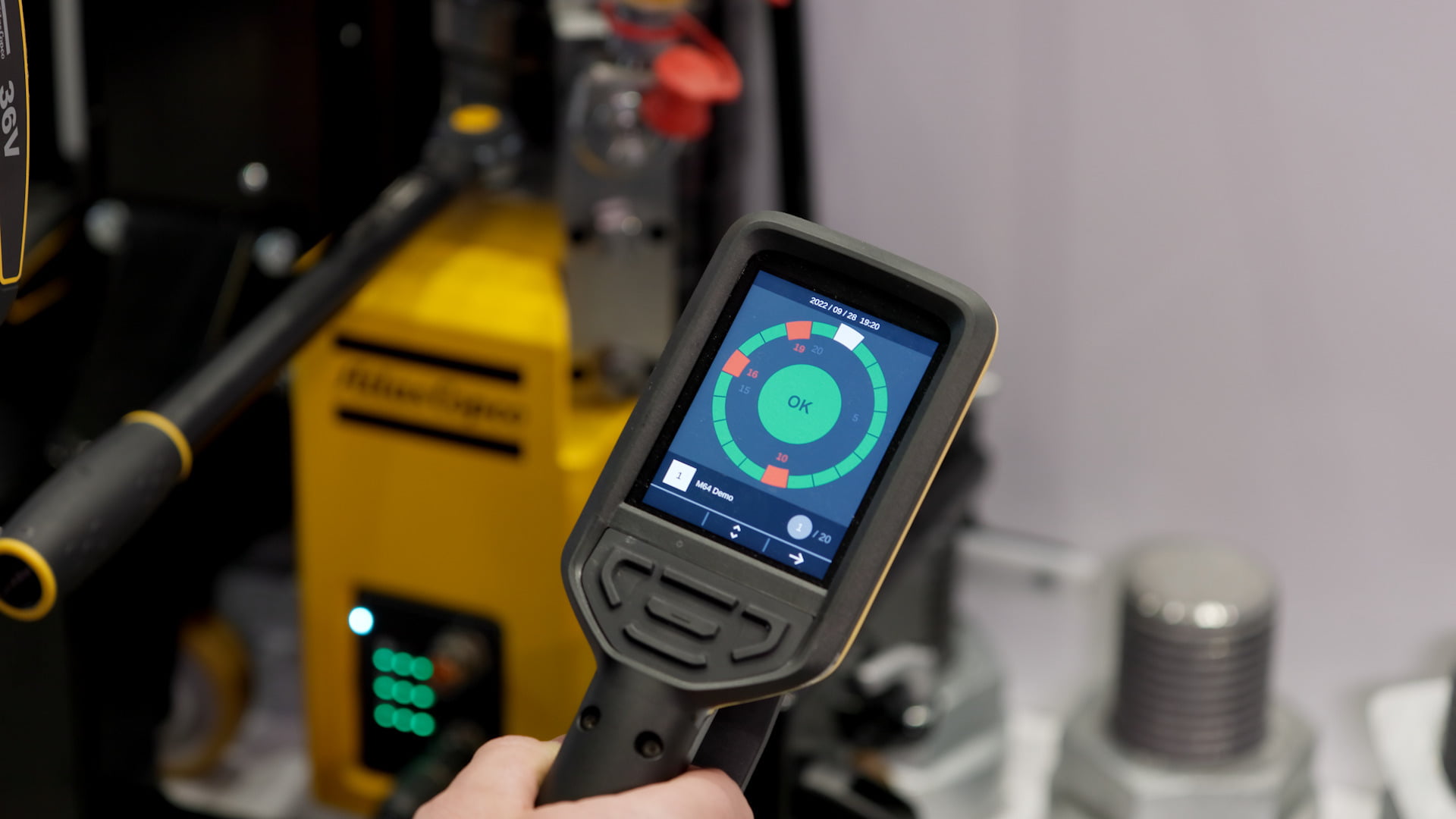

Solution: The Power Focus Hand Controller, can do all of this, and more. Putting all of the brains into one incredibly powerful component, so you can monitor the whole process from your hand.

Would one control system improve efficiency?

Ensuring the right tensioner for the application

Pain Point: The tensioner and pump as a complete system needs to be right, fit for application, tested and calibrated ensuring safety and integrity of results. Using or picking out of service equipment may eventually lead to re-work or loss of operator time which can be very expensive, specially offshore.

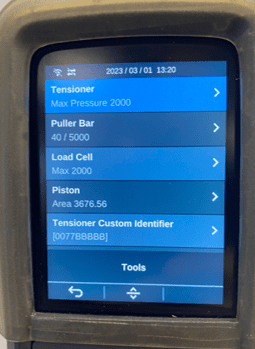

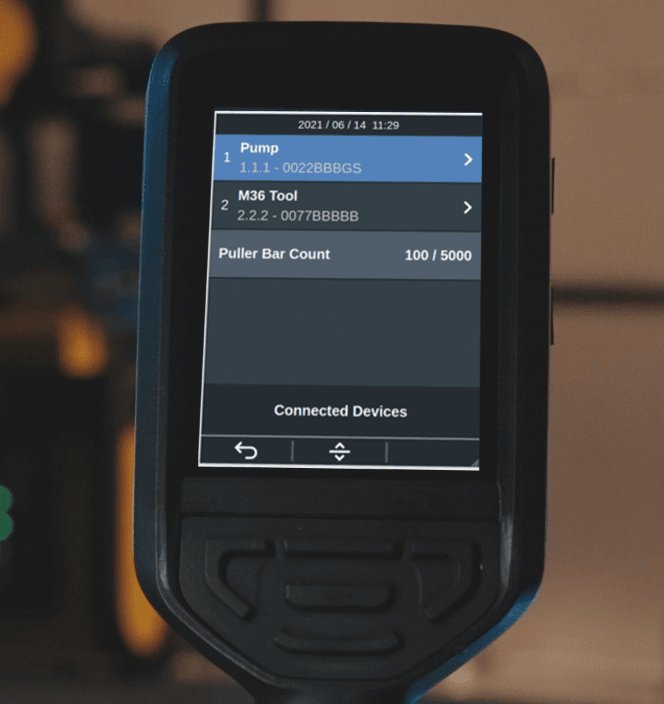

Solution: The hand controller identifies the tensioner connected and highlights the programs which have been created for that specific tensioner. This ensures correct parameters for that specific tensioner.

Have you had an instance where an incorrect tensioner or uncalibrated equipment has been used?

Operator guidance on hand controller and tensioner for efficient and safe working

Pain Point: Operator rotation is common in field. Process involves multiple steps and if not guided, it consumes time and potential errors.

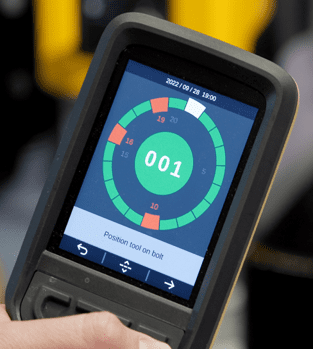

Solution: The hand controller provides complete guidance on each step with text and LED indicators to be used by any skilled or new operators ensuring fast and accurate operation. LED's on the tensioner mirror with LEDs on hand controller makes it easy for two operators to work efficiently.

Do you agree that operator guidance is one of the key issues in the field ?

Warnings and events indication at right time saves money

Pain Point: Using standard tools, it's hard to know exactly the right time when tools have an issue. Often by the time you know about an issue, it's too late and damage has been done and you need replacements. Out in the field, time is money and this can be detrimental to ongoing projects.

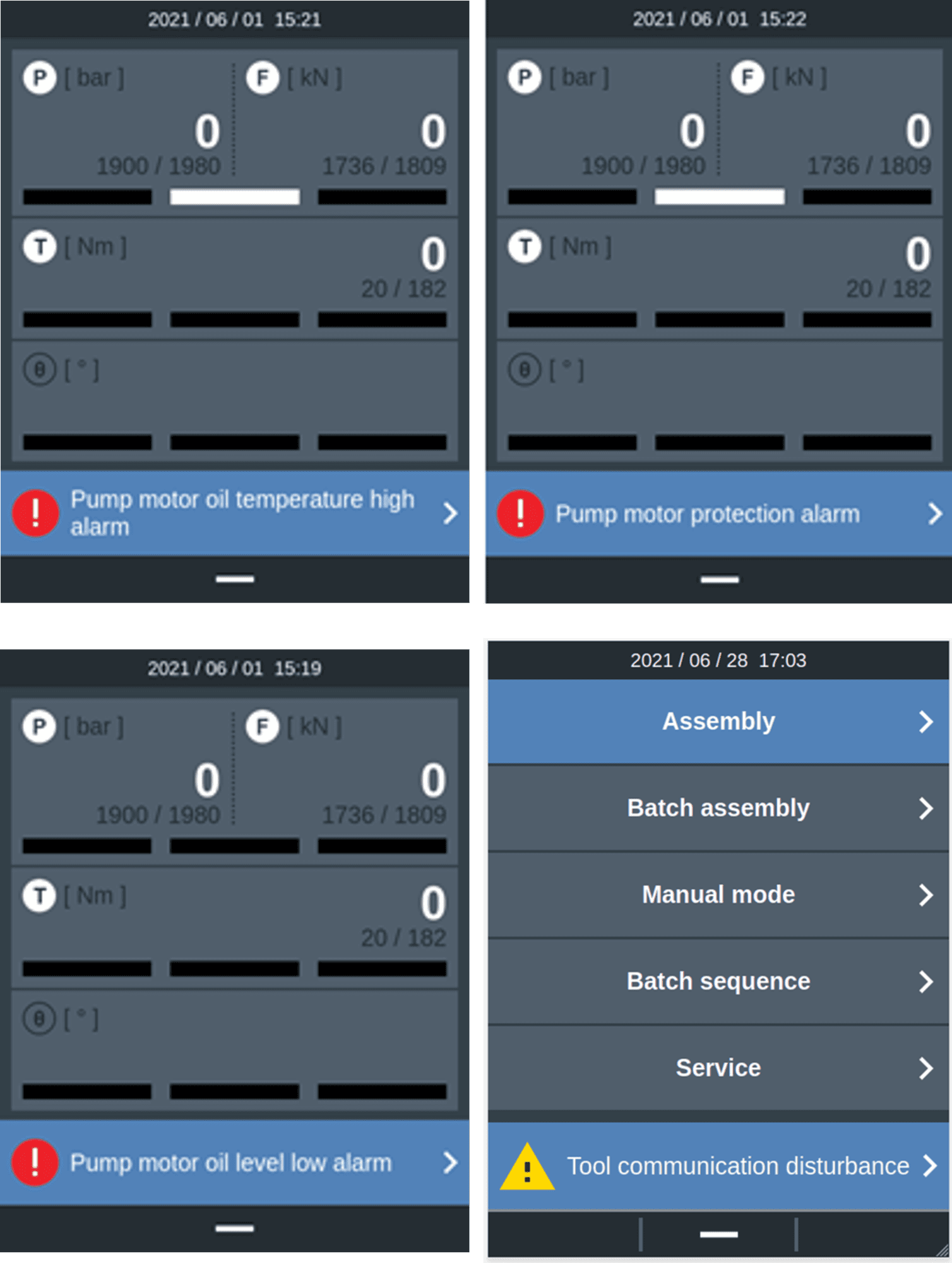

Solution: Directly on the hand controller, you will receive warnings when an issue has occurred. This relates to: Puller bar life cycle, Voltage fluctuations, and internal temperature increase.

Has a project suffered due to a tool failing?

Complete traceability

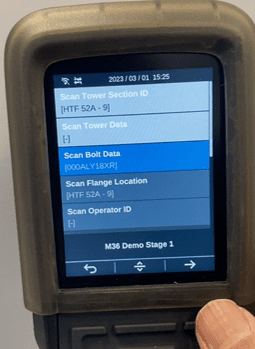

Scan of application section / tower, bolt batch, operator ID and other upto 7 identifiers in the process.

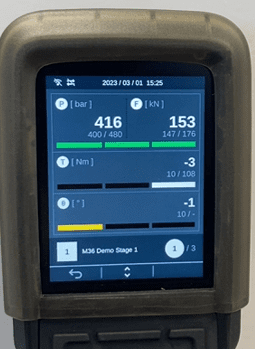

Data for pressure torque and angle of nut rotation for each tightening is stored in result file.

Operator can visit specific bolt number on hand controller to check results any time.

Identify which tensioner and which pump were used by serial numbers in result file.

Benefits Summary

Pressure torque and angle sensors.
One hand controller operates, scans, guides and record.
Complete traceability of job with multiple identifiers.
No chance of using wrong tool with wrong pressures and loads.
Easy for one operator to use with complete visibility of operation status on hand controller.
Maintenance prompts on hand controller.
In-built motor and electronics protection against faulty power supply.
Compact power pack fits easily in lift or workspace.
Data in xml and csv format stored for each batch for quality control.
Connectivity to data monitoring software like ToolsNet8 or through open protocol.
